# Statechart Diagram

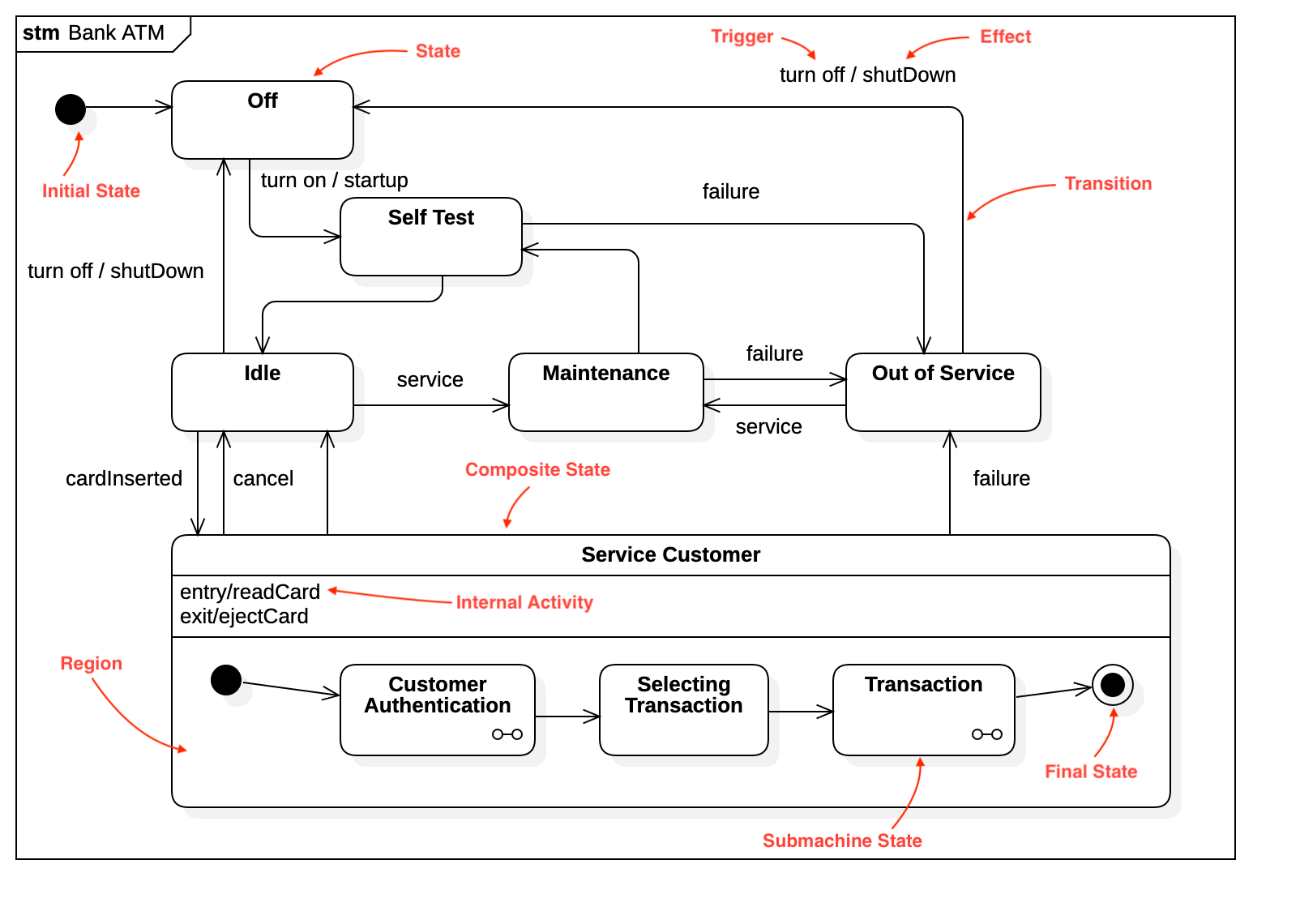

![Statechart Diagram (from uml-diagrams.org)](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/yHbX8Mqx57zBwnyM7i7M/Bank%20ATM!State%20Model!Bank%20ATM!Bank%20ATM%20State%20Model_21.png)

## Create Statechart Diagram

To create a Statechart Diagram:

1. Select first an element where a new Statechart Diagram to be contained as a child.
2. Select **Model | Add Diagram | Statechart Diagram** in Menu Bar or select **Add Diagram | Statechart Diagram** in Context Menu.

> **See also**
>
> [UML Statechart Diagram](http://www.uml-diagrams.org/state-machine-diagrams.html) - For more information about UML Statechart Diagram.

## State

To create a Simple State:

1. Select **Simple State** in **Toolbox**.
2. Drag on the diagram as the size of Simple State.

To create a Composite State:

1. Select **Composite State** in **Toolbox**.
2. Drag on the diagram as the size of Composite State.

To create a Submachine State:

1. Select **Submachine State** in **Toolbox**.
2. Drag on the diagram as the size of Submachine State.
3. Select a StateMachine in **Element Picker Dialog**.

To create an Orthogonal State:

1. Select **Orthogonal State** in **Toolbox**.
2. Drag on the diagram as the size of Orthogonal State.

You can use **QuickEdit** for State by double-click or press `Enter` on a selected State.

* **Name Expression** : Edit name expression.

  *Syntax of Name Expression*

  ```
  expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
  stereotype ::= (identifier)
  visibility ::= '+' | '#' | '-' | '~'
  name ::= (identifier)
  ```
* **Add ConnectionPointReference** : Add a connection point reference.
* **Add Region** : Add a region.
* **Add Note** : Add a linked note.
* **Add Constraint** : Add a constraint.
* **Add Entry Activity** : Add an entry activity.
* **Add Do Activity** : Add an do activity.
* **Add Exit Activity** : Add an exit activity.
* **Add Internal Transition** : Add an internal transition.

## Internal Activity

To add an Entry Activity:

1. Select a State.
2. Select **Model | Add | Entry Activity** in Menu Bar or **Add | Entry Activity** in Context Menu.
3. Select a kind of Activity to create (one of OpaqueBehavior, Activity, StateMachine, or Interaction).

To add a Do Activity:

1. Select a State.
2. Select **Model | Add | Do Activity** in Menu Bar or **Add | Do Activity** in Context Menu.
3. Select a kind of Activity to create (one of OpaqueBehavior, Activity, StateMachine, or Interaction).

To add an Exit Activity:

1. Select a State.
2. Select **Model | Add | Exit Activity** in Menu Bar or **Add | Exit Activity** in Context Menu.
3. Select a kind of Activity to create (one of OpaqueBehavior, Activity, StateMachine, or Interaction).

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Internal Transition

To add an Internal Transition:

1. Select a State.
2. Popup Quic Edit for State by double click or press `Enter` on a selected State.
3. Select **Add Internal Transition** button in Quick Edit.

You can use **QuickEdit** for Internal Transition by double-click or press `Enter` on a selected Internal Transition.

* **Name Expression** : Edit name expression.

  *Syntax of Name Expression*

  ```
  expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
  stereotype ::= (identifier)
  visibility ::= '+' | '#' | '-' | '~'
  name ::= (identifier)
  ```
* **Add Trigger Event** : Add a trigger event.
* **Add Effect Behavior** : Add an effect behavior.

## Region

To add a Region:

1. Select a State.
2. Select **Model | Add | Region** in Menu Bar or **Add | Region** in Context Menu.

## Initial State

To create a Initial State:

1. Select **Initial State** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Choice

To create a Choice:

1. Select **Choice** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Join

To create a Join:

1. Select **Join** in **Toolbox**.
2. Drag on the diagram as the size of Join.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Fork

To create a Fork:

1. Select **Fork** in **Toolbox**.
2. Drag on the diagram as the size of Fork.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Junction

To create a Junction:

1. Select **Junction** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Shallow History

To create a Shallow History:

1. Select **Shallow History** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Deep History

To create a Deep History:

1. Select **Deep History** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Entry Point

To create a Entry Point:

1. Select **Entry Point** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Exit Point

To create a Exit Point:

1. Select **Exit Point** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Terminate

To create a Terminate:

1. Select **Terminate** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Final State

To create a Final State:

1. Select **Final State** in **Toolbox**.
2. Click at the position on the diagram.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Connection Point Reference

To create a Connection Point Reference:

1. Select **Connection Point Reference** in **Toolbox**.
2. Click on a State where Connection Point Reference to be contained.

You can use **QuickEdit** for Model Element (See [Model Element](https://docs.staruml.io/class-diagram#model-element)).

## Transition

To create a Transition (or Self Transition):

1. Select **Transition** (or **Self Transition**) in **Toolbox**.
2. Drag from a State and drop on another State. (Just click on a State if you want to create a Self Transition.)

You can use **QuickEdit** for Transition by double-click or press `Enter` on a selected Transition.

* **Transition Expression** : Edit transition expression.

  *Syntax of Transition Expression*

  ```
  transition ::= [ trigger-list ] [ '[' guard ']' ] [ '/' effect ]
  trigger-list ::= trigger [ ',' trigger ]
  trigger ::= (identifier)
  guard ::= (string)
  effect ::= (identifier)
  ```
* **Add Note** : Add a linked note.
* **Add Constraint** : Add a constraint.
* **Add Trigger Event** : Add a trigger event.
* **Add Effect Behavior** : Add an effect behavior.


---
