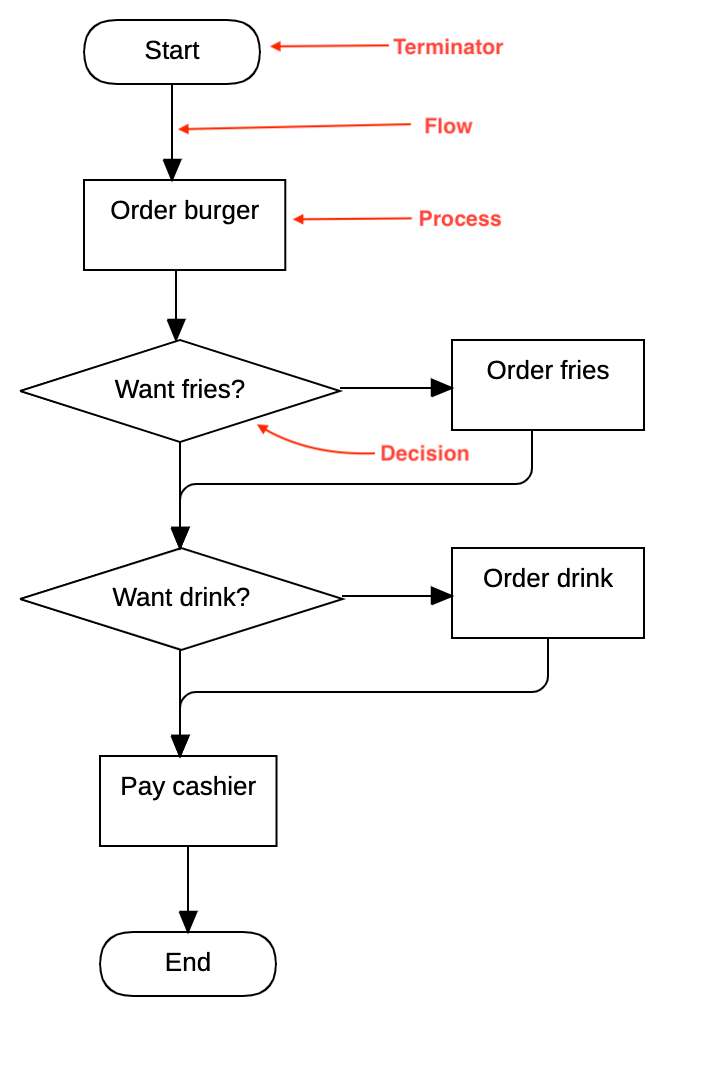

Create Flowchart Diagram

To create a Flowchart Diagram:

  1. Select first an element where a new Flowchart Diagram to be contained as a child.

  2. Select Model | Add Diagram | Flowchart Diagram in Menu Bar or select Add Diagram | Flowchart Diagram in Context Menu.

Flowchart Element

Flowchart Element is an abstract element of all flowchart elements.

You can use QuickEdit for Flowchart Element by double-click or press Enter on a selected Flowchart Element.

  • Name : Edit name.

  • Add Note : Add a linked note.

  • Add Outgoing Process : Add an outgoing flow with a process.

  • Add Incoming Process : Add an incoming flow with a process.

  • Add Outgoing Decision : Add an outgoing flow with a decision.

  • Add Incoming Decision : Add an incoming flow with a decision.

Flow

To create a Flow:

  1. Select Flow in Toolbox.

  2. Drag from an flowchart element and drop on another flowchart element.

You can use QuickEdit by double-click or press Enter on a selected flow.

  • Name : Edit name.

  • Add Note : Add a linked note.

Process

To create a Process:

  1. Select Process in Toolbox.

  2. Drag on the diagram as the size of Process.

Terminator

To create a Terminator:

  1. Select Terminator in Toolbox.

  2. Drag on the diagram as the size of Terminator.

Decision

To create a Decision:

  1. Select Decision in Toolbox.

  2. Drag on the diagram as the size of Decision.

Delay

To create a Delay:

  1. Select Delay in Toolbox.

  2. Drag on the diagram as the size of Delay.

Predefined Process

To create a Predefined Process:

  1. Select Predefined Process in Toolbox.

  2. Drag on the diagram as the size of Predefined Process.

Alternate Process

To create a Alternate Process:

  1. Select Alternate Process in Toolbox.

  2. Drag on the diagram as the size of Alternate Process.

Data

To create a Data:

  1. Select Data in Toolbox.

  2. Drag on the diagram as the size of Data.

Document

To create a Document:

  1. Select Document in Toolbox.

  2. Drag on the diagram as the size of Document.

Multi-Document

To create a Multi-Document:

  1. Select Multi-Document in Toolbox.

  2. Drag on the diagram as the size of Multi-Document.

Preparation

To create a Preparation:

  1. Select Preparation in Toolbox.

  2. Drag on the diagram as the size of Preparation.

Display

To create a Display:

  1. Select Display in Toolbox.

  2. Drag on the diagram as the size of Display.

Manual Input

To create a Manual Input:

  1. Select Manual Input in Toolbox.

  2. Drag on the diagram as the size of Manual Input.

Manual Operation

To create a Manual Operation:

  1. Select Manual Operation in Toolbox.

  2. Drag on the diagram as the size of Manual Operation.

Card

To create a Card:

  1. Select Card in Toolbox.

  2. Drag on the diagram as the size of Card.

Punched Tape

To create a Punched Tape:

  1. Select Punched Tape in Toolbox.

  2. Drag on the diagram as the size of Punched Tape.

Connector

To create a Connector:

  1. Select Connector in Toolbox.

  2. Drag on the diagram as the size of Connector.

Off-Page Connector

To create a Off-Page Connector:

  1. Select Off-Page Connector in Toolbox.

  2. Drag on the diagram as the size of Off-Page Connector.

Or

To create a Or:

  1. Select Or in Toolbox.

  2. Drag on the diagram as the size of Or.

Summing Junction

To create a Summing Junction:

  1. Select Summing Junction in Toolbox.

  2. Drag on the diagram as the size of Summing Junction.

Collate

To create a Collate:

  1. Select Collate in Toolbox.

  2. Drag on the diagram as the size of Collate.

Sort

To create a Sort:

  1. Select Sort in Toolbox.

  2. Drag on the diagram as the size of Sort.

Merge

To create a Merge:

  1. Select Merge in Toolbox.

  2. Drag on the diagram as the size of Merge.

Extract

To create a Extract:

  1. Select Extract in Toolbox.

  2. Drag on the diagram as the size of Extract.

Stored Data

To create a Stored Data:

  1. Select Stored Data in Toolbox.

  2. Drag on the diagram as the size of Stored Data.

Database

To create a Database:

  1. Select Database in Toolbox.

  2. Drag on the diagram as the size of Database.

Direct Access Storage

To create a Direct Access Storage:

  1. Select Direct Access Storage in Toolbox.

  2. Drag on the diagram as the size of Direct Access Storage.

Internal Storage

To create a Internal Storage:

  1. Select Internal Storage in Toolbox.

  2. Drag on the diagram as the size of Internal Storage.

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).

You can use QuickEdit for Flowchart Element (See ).
