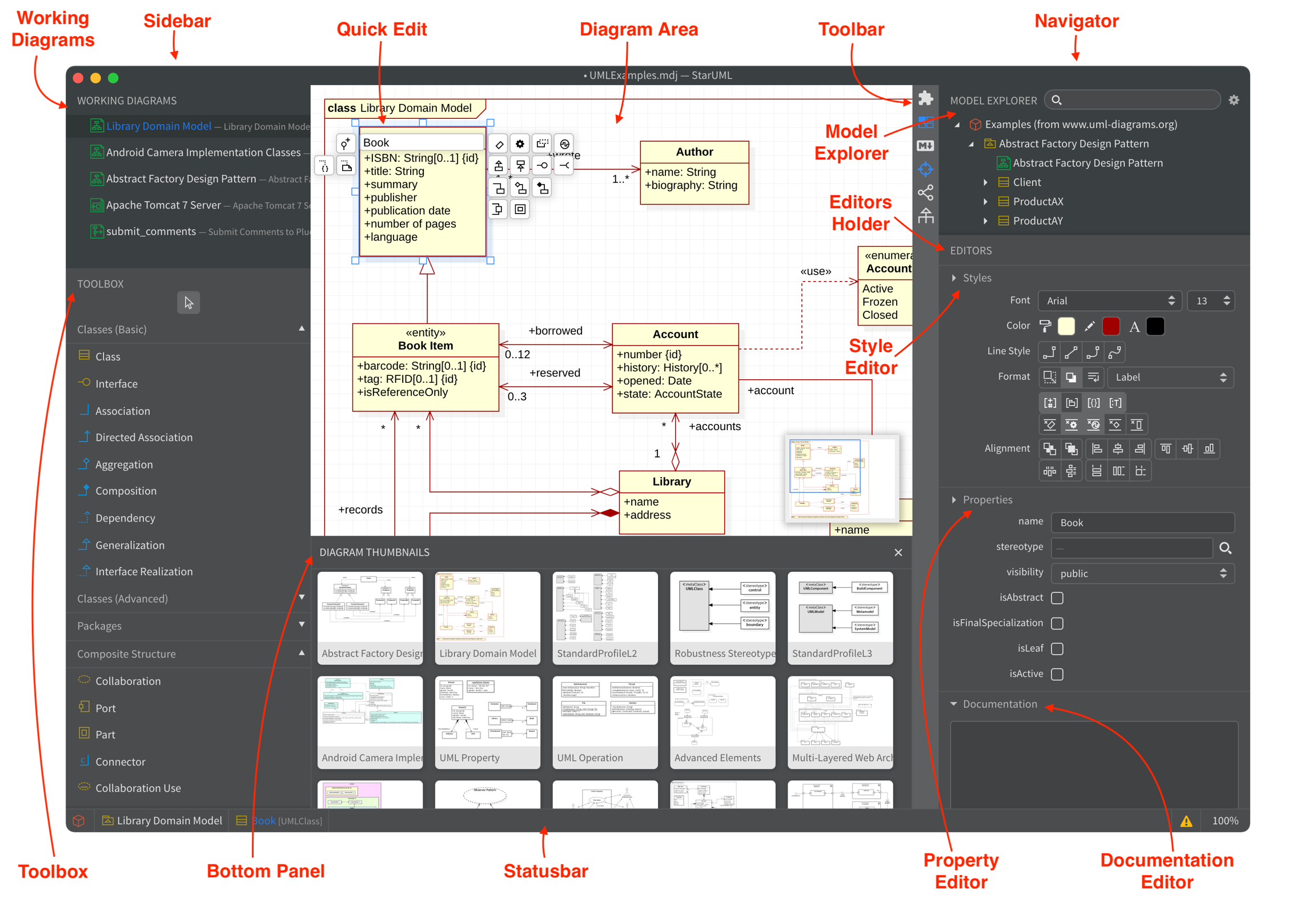

# User Interface ## Main Window ![](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/WOpWE489gqkSUOS0UPUB/screenshot-annotations.png) ### Diagram Area (Diagram Editor) *Diagram Area (Diagram Editor)* shows the currently selected diagram. ### Sidebar *Sidebar* is the area left containing *Working Diagrams* panel and *Toolbox*. To show or hide *Sidebar*, press `Ctrl+1` or check (or uncheck) **View | Sidebar** in Menu Bar. ### Working Diagrams *Working Diagrams* panel shows a list of the opened working diagram. The selected diagram is shown in the *Diagram Area*. ### Toolbox *Toolbox* shows elements which can be created in the selected diagram. To create an element: 1. Select an element in Toolbox 2. Mouse down on the Diagram Area and then drag as the size of the element to be created. If the element is a kind of relationship, connect two elements by drag and drop. To show or hide *Toolbox*, press `Ctrl+5` or check (or uncheck) **View | Toolbox** in Menu Bar. ### Navigator *Navigator* is the right area containing *Model Explorer* and *Editors*. To show or hide *Navigator*, press `Ctrl+2` or check (or uncheck) **View | Navigator** in Menu Bar. ### Model Explorer *Model Explorer* shows the tree structure of model elements. You can find an element quickly by search box. To change the order of elements: 1. Select the dropdown menu in the right up corner of **Model Explorer**. 2. Select one of the sorting types * Sort by Added * Sort by Name To show or hide stereotypes in front of element name by check of uncheck **Show Stereotype Text** in the dropdown menu. You can expand or collapse all tree nodes by select **Expand All** or **Collapse All** in the dropdown menu. ### Editors (Holder) Editors (Holder) contains editors to edit properties of model and view elements. It includes *Style Editor*, *Property Editor*, and *Documentation Editor*. To show or hide *Editors*, press `Ctrl+6` or check (or uncheck) **View | Editors** in Menu Bar. ### Style Editor *Style Editor* allows to edit styles of selected view elements. ### Property Editor *Property Editor* allows to edit properties of selected model elements. ### Documentation Editor *Documentation Editor* allows to edit documentation property of a selected model element. ### Toolbar *Toolbar* shows tool buttons typically provided from default or installed third-party extensions. To show or hide *Toolbar*, press `Ctrl+3` or check (or uncheck) **View | Toolbar** in Menu Bar. ### Bottom Panel *Bottom Panel* is a panel shown below *Diagram Area* typically provided from default or installed third-party extensions including *Find Results*, *Diagram Thumbnails*, *Validation Results*, *Markdown Editor* and etc. ### Statusbar To show or hide *Statusbar*, press `Ctrl+4` or check (or uncheck) **View | Statusbar** in Menu Bar. ## Dialogs ### Font Dialog Font Dialog allows to edit font style, size and color for view elements. ![](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/FQvH57kAE7TE9CmHyNNI/font-dialog.png) ### Color Dialog Color Dialog allows to edit fill or line color for view elements. ![](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/OwWGjfIXifBEhESpqaJN/color-dialog.png) ### Element Picker Dialog Element Picker Dialog allows to select an model element from all model elements shown in tree structure. Checking **Do not specify** means nothing selected. ![Element Picker](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/AkMdDa1LOz0Izsil2JOd/element-picker.png) ### Element List Picker Dialog Element List Picker Dialog allows to select an model element from a given list of model elements. Checking **Do not specify** means nothing selected. ![Element List Picker](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/vxisqrmGdRCygQeRuIPj/element-list-picker.png) ### Element List Editor Dialog Element List Editor Dialog is used when user need to select a list of model elements. It allows to add or remove elements from the list and also to modify the order of elements by move up and down. ![Element List Editor](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/lbOt2CDX2cLu9mhISHo6/element-list-editor.png) ### Print Dialog Print Dialog allows to configure how to print. * Print Rage : Select whether all diagrams to be printed or the current diagram to be printed. * Page Layout : Select page layout is landscape or portait. * Page Size : Select a proper page size * Show Diagram Name : Select whether diagram name to be printed or not. ![Print Dialog](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/qyAs2H0j34WZ9i1m9pFK/print-dialog.png) ### Preferences Dialog Preference Dialog allows to set preferences. Left area shows preference schemas which contains a set of preference items. When you select a preference shema in the left area, then all preference items are shown. If you want to restore default settings, Select **Restore Default Settings** button in the most bottom. ![Preferences Dialog](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/LDWoQnvgs6pAqO0uZ2AC/preference-dialog.png) ### Extension Manager Dialog Extension Manager Dialog allows to install or uninstall extensions from Extension Registry. While **Registry** tab shows all available extensions, while **Installed** tab only shows the installed extension in local. If you want to install an extension directly from Github URL, Select **Install From Url...** and enter the extension's url. ![Extension Manager](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/AMP4HzjlIIFvBXNnwEIY/extension-manager.png) ## Tag Editor Tag Editor is a convenient tool to manage Tags for an element. It shows all Attributes of the Stereotype assigned to the element, so it is easy to create Tags corresponding Stereotype's Attributes. It also shows all Tags which is not associated with a particular a Stereotype's Attribute. To open Tag Editor, select **Model | Tag Editor...** in Menu Bar or press key `Cmd+T` in macOS or `Ctrl+T` in Windows and Linux. ![Tag Editor](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/cqjbuiMMlDRVZESef16N/tag-editor.png) ## Quick Find Quick Find allows to find a model elements, view element, or a diagram quickly. To popup Quick Find, select **View | Quick Find...** in Menu Bar or press key `Cmd+P` in macOS or `Ctrl+P` in Windows and Linux. ![Quick Find](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/CEz0LgxYJ68NmL8drSXJ/quick-find.png) ## Command Palette Command Palette allows to search and execute commands supported by default or installed extensions. To popup Command Palette, select **View | Command Palette...** in Menu Bar or press key `Cmd+Shift+P` in macOS or `Ctrl+Shift+P` in Windows and Linux. ![Command Palette](https://content.gitbook.com/content/aNbtXAm2MUsbrMlAEZb1/blobs/MKP8i31CeKQL18LrScIh/command-palette.png)
