GCP Architecture Diagram

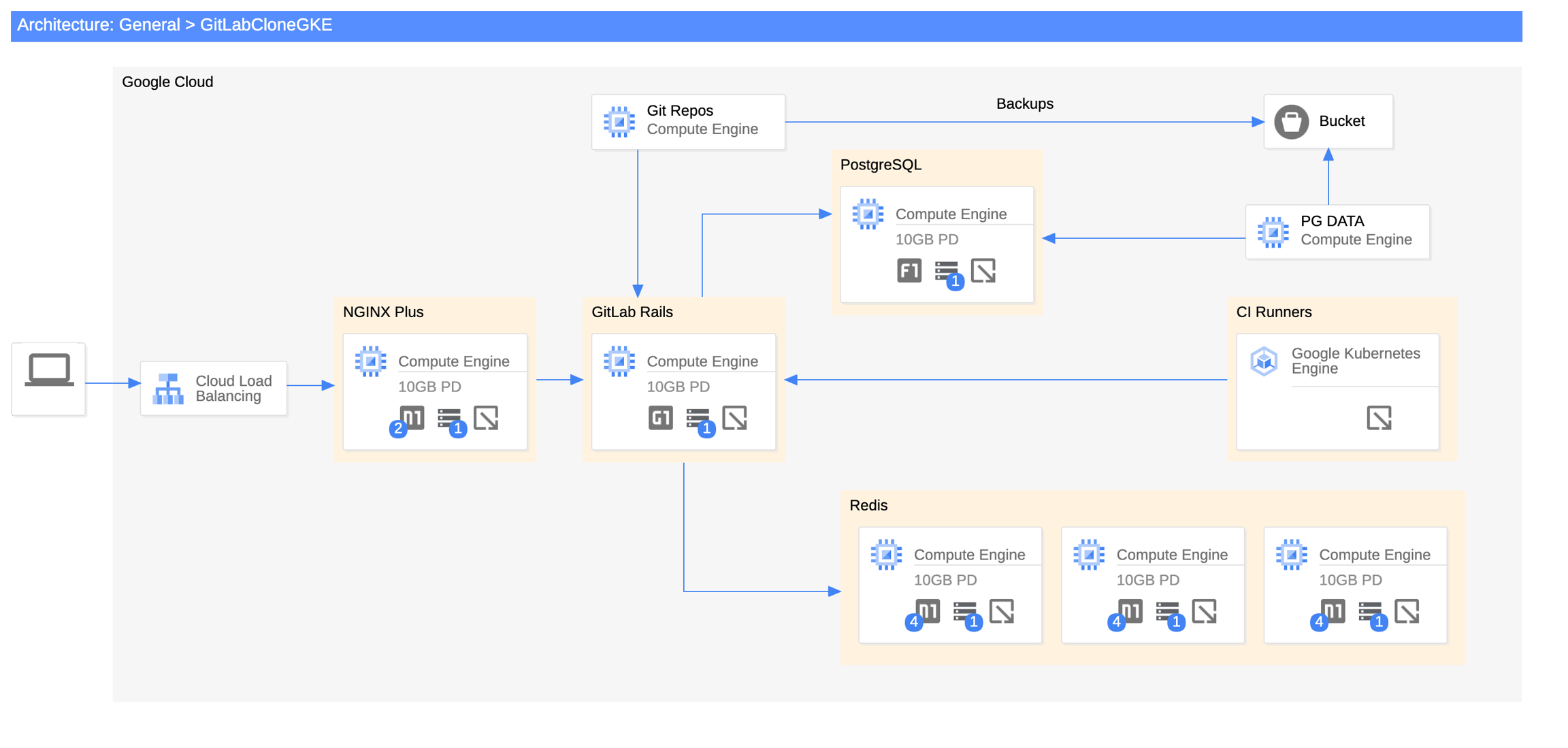

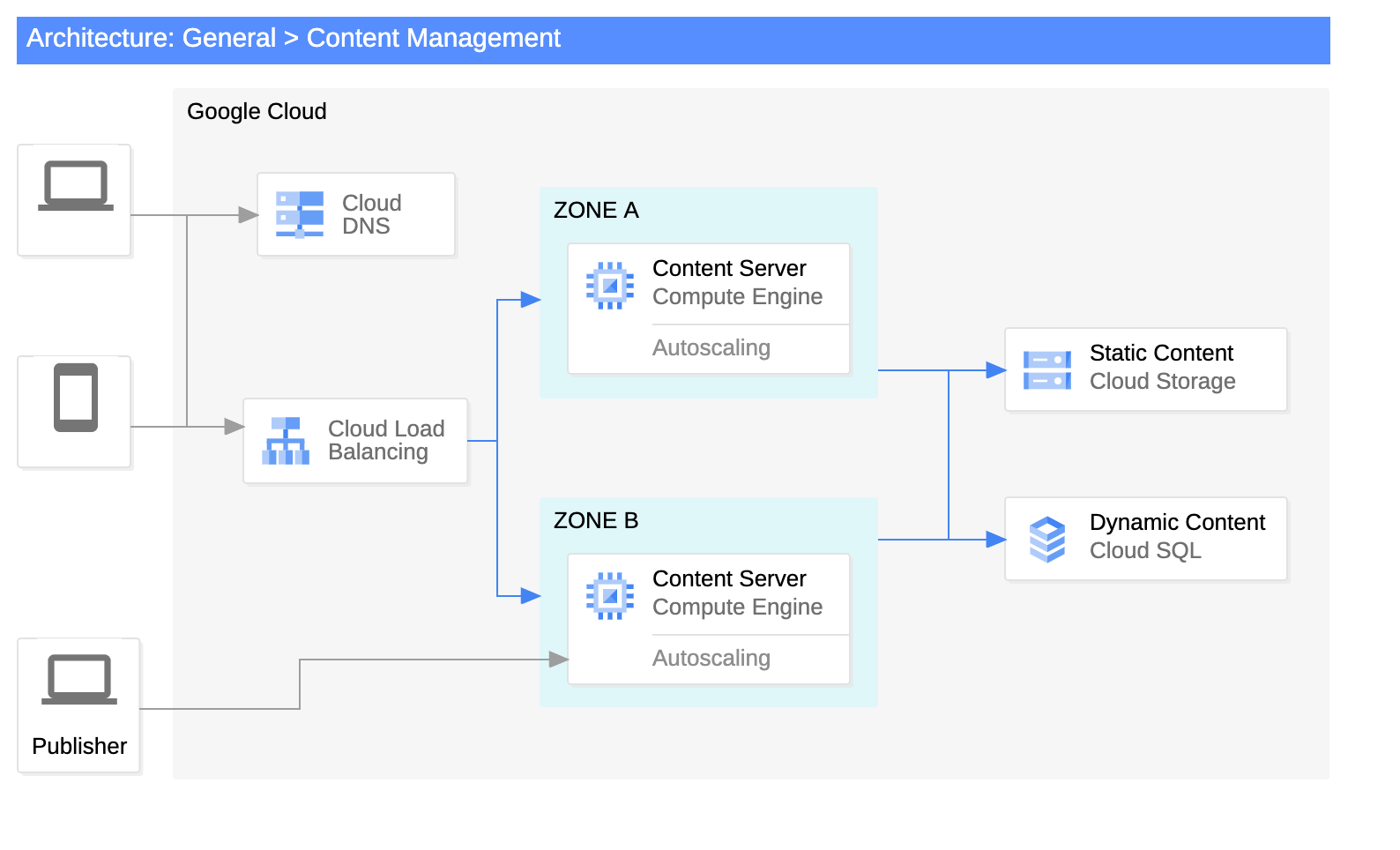

GCP (Google Cloud Platform) Architecture Diagram

GCP (Google Cloud Platform) Architecture Diagram

Create GCP Architecture Diagram

To create a GCP Architecture Diagram:

1. Select first an element where a new GCP Architecture Diagram to be contained as a child.

2. Select Model | Add Diagram | GCP Architecture Diagram in Menu Bar or select Add Diagram | GCP Architecture Diagram in Context Menu.

GCP Model

To create a GCP Model (model element only) by Menu:

1. Select an Element where a new GCP Model to be contained.

2. Select Model | Add | GCP Model in Menu Bar or Add | GCP Model in Context Menu.

Zone

To create a Zone element:

1. Select Zone in Toolbox.

2. Drag on the diagram as the size.

You can use QuickEdit for element by double-click or press Enter on a selected element.

• Name : Edit name.

• Add Note : Add a linked note.

• Zone Type : Change zone type.

User

To create a User element:

1. Select User in Toolbox.

2. Drag on the diagram as the size.

You can use QuickEdit for element by double-click or press Enter on a selected element.

• Name : Edit name.

• Add Note : Add a linked note.

• GCP Icon : Change GCP icon.

Product

To create a Product element:

1. Select Product in Toolbox.

2. Drag on the diagram as the size.

You can use QuickEdit for element by double-click or press Enter on a selected element.

• Name : Edit name.

• Add Note : Add a linked note.

• GCP Icon : Change GCP icon.

If you want to show multi instance, check multiInstance property in Property Editor.

If you want to expand, check expanded property in Property Editor. One you expanded, you can show more information as below

• expandedInfo : Shown below the product name (e.g. 10GB PD or Autoscaling, etc.)

• machineType : Show below as machine type icon with circled number of cores and ram. The circled numbers are shown only if the number is greater than 0.

• diskType : Show below as disk icon with circled number of disks. The circled numbers are shown only if the number is greater than 0.

• additionalModifier : Shown below as a modifier icon.

Service

To create a Service element:

1. Select Service in Toolbox.

2. Drag on the diagram as the size.

You can use QuickEdit for element by double-click or press Enter on a selected element.

• Name : Edit name.

• Add Note : Add a linked note.

• GCP Icon : Change GCP icon.

Path

To create a Path Arrow:

1. Select Path in Toolbox.

2. Drag from an element and drop on another element.

You can use QuickEdit by double-click or press Enter on a selected relationship.

• Name : Edit name.

• Add Note : Add a linked note.
