  1. Working with UML Diagrams

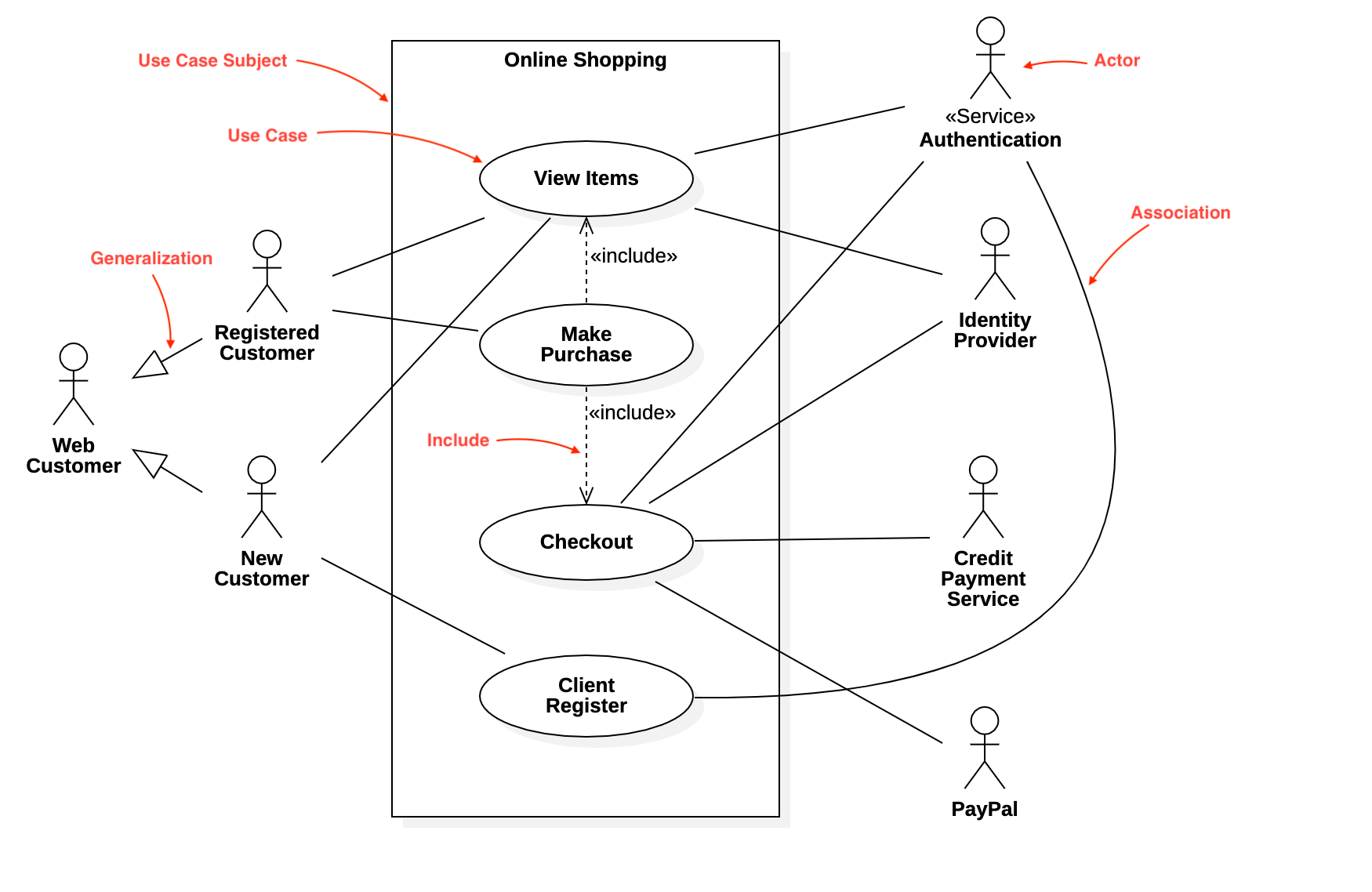

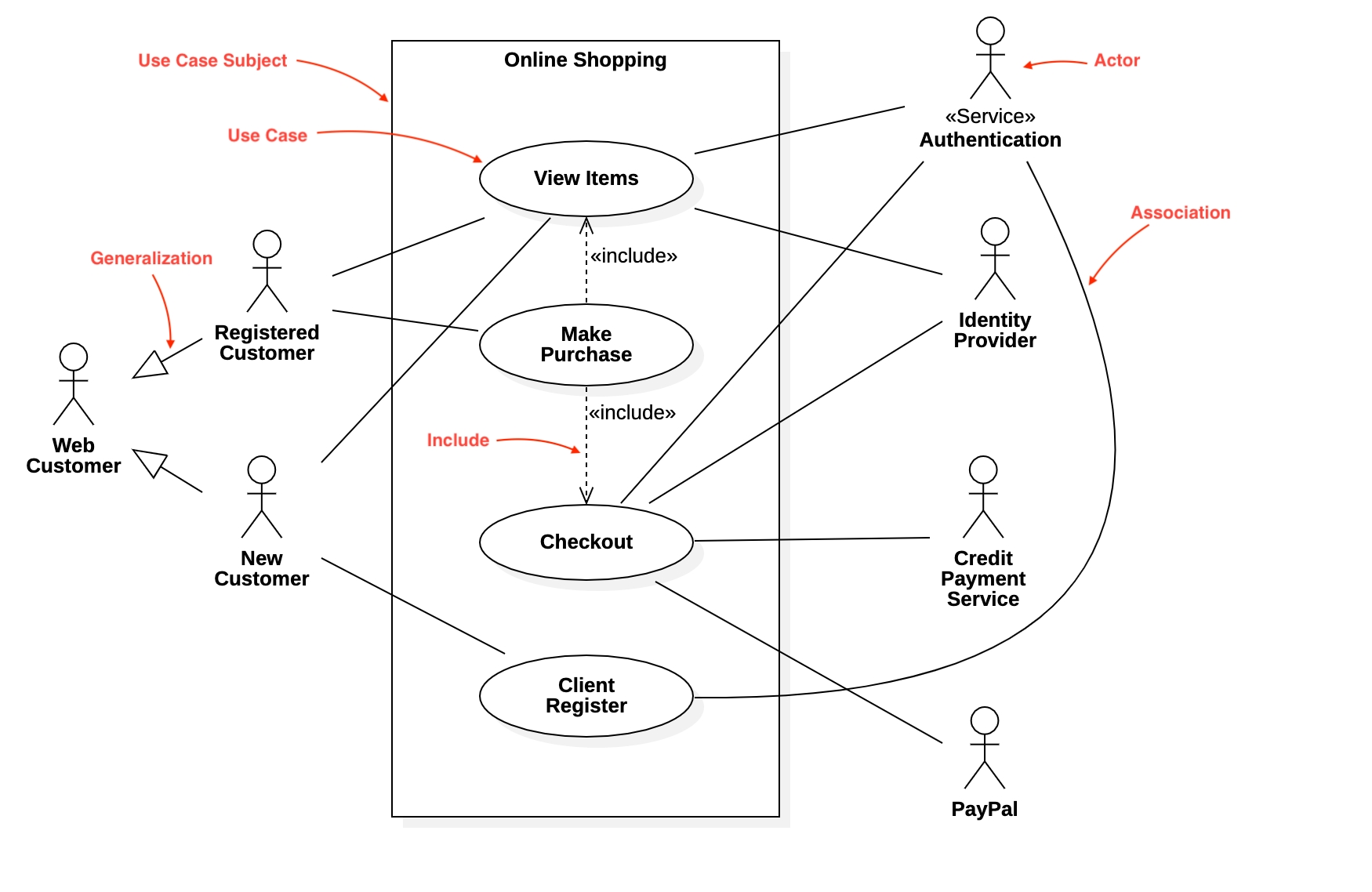

Use Case Diagram

PreviousDeployment DiagramNextSequence Diagram

Last updated 1 year ago

Create Use Case Diagram

To create a Use Case Diagram:

  1. Select first an element where a new Use Case Diagram to be contained as a child.

  2. Select Model | Add Diagram | Use Case Diagram in Menu Bar or select Add Diagram | Use Case Diagram in Context Menu.

See also

Use Case Subject

To create an Use Case Subject:

  1. Select Use Case Subject in Toolbox.

  2. Drag on the diagram as the size of Use Case Subject.

Actor

To create an Actor:

  1. Select Actor in Toolbox.

  2. Drag on the diagram as the size of Actor.

To create an Actor (model element only) by Menu:

  1. Select an Element where a new Actor to be contained.

  2. Select Model | Add | Actor in Menu Bar or Add | Actor in Context Menu.

You can use QuickEdit for Actor by double-click or press Enter on a selected Actor.

  • Name Expression : Edit name expression.

    Syntax of Name Expression

    expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
    stereotype ::= (identifier)
    visibility ::= '+' | '#' | '-' | '~'
    name ::= (identifier)
  • Visibility : Change visibility property.

  • Add Note : Add a linked note.

  • Add Constraint : Add a constraint.

  • Add Attribute (Ctrl+Enter) : Add an attribute.

  • Add Operation (Ctrl+Shift+Enter) : Add an operation.

  • Add Sub-Actor : Add a sub-actor.

  • Add Super-Actor : Add a super actor.

  • Add Associated Use Case : Add an associated use case.

Use Case

To create an Use Case:

  1. Select Use Case in Toolbox.

  2. Drag on the diagram as the size of Use Case.

To create an Use Case (model element only) by Menu:

  1. Select an Element where a new Use Case to be contained.

  2. Select Model | Add | Use Case in Menu Bar or Add | Use Case in Context Menu.

You can use QuickEdit for Use Case by double-click or press Enter on a selected Use Case.

  • Name Expression : Edit name expression.

    Syntax of Name Expression

    expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
    stereotype ::= (identifier)
    visibility ::= '+' | '#' | '-' | '~'
    name ::= (identifier)
  • Visibility : Change visibility property.

  • Add Note : Add a linked note.

  • Add Constraint : Add a constraint.

  • Add Extension Point (Ctrl+Enter) : Add an extension point.

  • Add Associated Actor : Add an associated actor.

  • Add Included Use Case : Add an included use case.

  • Add Extended Use Case : Add an extended use case.

Extension Point

To add an Extension Point:

  1. Select an Use Case.

  2. Select Model | Add | Extension Point in Menu Bar or Add | Extension Point in Context Menu.

You can use QuickEdit for Extension Point by double-click or press Enter on a selected Extension Point.

  • Name Expression : Edit name expression.

    Syntax of Name Expression

    expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
    stereotype ::= (identifier)
    visibility ::= '+' | '#' | '-' | '~'
    name ::= (identifier)
  • Visibility : Change visibility property.

  • Add (Ctrl+Enter) : Add one more extension point in the below.

  • Delete (Ctrl+Delete) : Delete the extension point

  • Move Up (Ctrl+Up) : Move the extension point up.

  • Move Down (Ctrl+Down) : Move the extension point down.

Include

To create an Include:

  1. Select Include in Toolbox.

  2. Drag from a Use Case and drop on another Use Case (to be included).

Extend

To create an Extend:

  1. Select Extend in Toolbox.

  2. Drag from a Use Case (to be extended) and drop on another Use Case.

- For more information about UML Use Case Diagram.

You can use QuickEdit for Model Element (See ).

To suppress Attributes, see .

To suppress Operations, see .

To show or hide Operation Signatures, see .

To suppress Attributes, see .

To suppress Operations, see .

To show or hide Operation Signatures, see .

You can use QuickEdit for Relationship (See ).

You can use QuickEdit for Relationship (See ).

UML Use Case Diagram
Use Case Diagram (from uml-diagrams.org)
Model Element
Relationship
Relationship
Suppress Attributes
Suppress Operations
Show Operation Signature
Suppress Attributes
Suppress Operations
Show Operation Signature
