  1. Working with UML Diagrams

Activity Diagram

PreviousStatechart DiagramNextInformation Flow Diagram

Last updated 1 year ago

Create Activity Diagram

To create an Activity Diagram:

  1. Select first an element where a new Activity Diagram to be contained as a child.

  2. Select Model | Add Diagram | Activity Diagram in Menu Bar or select Add Diagram | Activity Diagram in Context Menu.

See also

Action

To create an Action:

  1. Select Action in Toolbox.

  2. Drag on the diagram as the size of Action.

You can use QuickEdit for Action by double-click or press Enter on a selected Action.

  • Name Expression : Edit name expression.

    Syntax of Name Expression

    expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
    stereotype ::= (identifier)
    visibility ::= '+' | '#' | '-' | '~'
    name ::= (identifier)
  • Add Input Pin : Add an input pin.

  • Add Output Pin : Add an output pin.

  • Add Note : Add a linked note.

  • Add Constraint : Add a constraint.

  • Add Trigger Event : Add a trigger event.

  • Add Outgoing Control Flow : Add an outgoing control flow with an action.

  • Add Incoming Control Flow : Add an incoming control flow with an action.

  • Add Outgoing Object Flow : Add an outgoing object flow with an object node.

  • Add Incoming Object Flow : Add an incoming object flow with an object node.

  • Add Decision : Add a decision with two additional actions.

  • Add Merge : Add a merge with two additional actions.

  • Add Fork : Add a fork with two additional actions.

  • Add Join : Add a join with two additional actions.

  • Add Initial Node : Add an initial node with a connected control flow.

  • Add Final Node : Add an final node with a connected control flow.

Trigger

To add a Trigger:

  1. Select an Action.

  2. Select Model | Add | Trigger in Menu Bar or Add | Trigger in Context Menu.

Initial Node

To create an Initial Node:

  1. Select Initial in Toolbox.

  2. Click at the position on the diagram.

Activity Final Node

To create an Activity Final Node:

  1. Select Activity Final in Toolbox.

  2. Click at the position on the diagram.

Fork Node

To create a Fork Node:

  1. Select Fork in Toolbox.

  2. Drag on the diagram as the size of Fork.

Join Node

To create a Join Node:

  1. Select Join in Toolbox.

  2. Drag on the diagram as the size of Join.

Merge Node

To create a Merge Node:

  1. Select Merge in Toolbox.

  2. Click at the position on the diagram.

Decision Node

To create a Decision Node:

  1. Select Decision in Toolbox.

  2. Click at the position on the diagram.

Swimlane (Partition)

To create a Swimlane (Vertical or Horizontal):

  1. Select Swimlane (Vertical) or Swimlane (Horizontal) in Toolbox.

  2. Drag on the diagram as the size of Swimlane.

Interruptible Activity Region

To create an Interruptible Activity Region:

  1. Select Interruptible Activity Region in Toolbox.

  2. Drag on the diagram as the size of Interruptible Activity Region.

Structured Activity Node

To create a Structured Activity Node:

  1. Select Structured Activity in Toolbox.

  2. Drag on the diagram as the size of Structured Activity Node.

Input Pin

To create an Input Pin:

  1. Select Input Pin in Toolbox.

  2. Click on an Action where Input Pin to be attached.

Output Pin

To create an Output Pin:

  1. Select Output Pin in Toolbox.

  2. Click on an Action where Output Pin to be attached.

Send Signal

To create a Send Signal:

  1. Select Send Signal in Toolbox.

  2. Drag on the diagram as the size of Send Signal.

Send Signal is actually an Action whose kind is sendSignal.

Accept Signal

To create an Accept Signal:

  1. Select Accept Signal in Toolbox.

  2. Drag on the diagram as the size of Accept Signal.

Accept Signal is actually an Action whose kind is acceptSignal.

Accept Time Event

To create an Accept Time Event:

  1. Select Accept Time Event in Toolbox.

  2. Drag on the diagram as the size of Accept Time Event.

Accept Time Event is actually an Action whose kind is timeEvent.

Flow Final Node

To create a Flow Final Node:

  1. Select Flow Final in Toolbox.

  2. Click at the position on the diagram.

Object Node

To create a Object Node:

  1. Select Object Node in Toolbox.

  2. Drag on the diagram as the size of Object Node.

You can use QuickEdit for Object Node by double-click or press Enter on a selected Object Node.

  • Name Expression : Edit name expression.

    Syntax of Name Expression

    expression ::= [ '<<' stereotype `>>` ] [ visibility ] name
    stereotype ::= (identifier)
    visibility ::= '+' | '#' | '-' | '~'
    name ::= (identifier)
  • Visibility : Change visibility property.

  • Add Note : Add a linked note.

  • Add Constraint : Add a constraint.

  • Add Outgoing Object Flow : Add an outgoing object flow with an object node.

  • Add Incoming Object Flow : Add an incoming object flow with an object node.

  • Add Outgoing Control Flow : Add an outgoing control flow with an action.

  • Add Incoming Control Flow : Add an incoming control flow with an action.

Central Buffer

To create a Central Buffer:

  1. Select Central Buffer in Toolbox.

  2. Drag on the diagram as the size of Central Buffer.

Datastore

To create a Datastore:

  1. Select Datastore in Toolbox.

  2. Drag on the diagram as the size of Datastore.

Activity Parameter Node

To create an Activity Parameter Node:

  1. Select Activity Parameter Node in Toolbox.

  2. Drag on the diagram as the size of Activity Parameter Node.

If you set the name as blank, the associated parameter's textual notation will be shown as the name.

Expansion Region

To create a Expansion Region:

  1. Select Expansion Region in Toolbox.

  2. Drag on the diagram as the size of Expansion Region.

Input Expansion Node

To create an Input Expansion Node:

  1. Select Input Expansion Node in Toolbox.

  2. Click on an Expansion Node where Input Expansion Node to be attached.

Output Expansion Node

To create an Output Expansion Node:

  1. Select Output Expansion Node in Toolbox.

  2. Click on an Expansion Node where Output Expansion Node to be attached.

Control Flow

To create a Control Flow:

  1. Select Control Flow in Toolbox.

  2. Drag from a node and drop on another node.

Object Flow

To create an Object Flow:

  1. Select Object Flow in Toolbox.

  2. Drag from a node and drop on another node.

Exception Handler

To create an Extension Handler:

  1. Select Extension Handler in Toolbox.

  2. Drag from a node and drop on another node.

Activity Interrupt

To create an Activity Interrupt:

  1. Select Activity Interrupt in Toolbox.

  2. Drag from a node and drop on another node.

- For more information about UML Activity Diagram.

You can use QuickEdit for Model Element (See ).

You can use QuickEdit for Model Element (See ).

You can use QuickEdit for Object Node (See ).

You can use QuickEdit for Object Node (See ).

You can use QuickEdit for Object Node (See ).

You can use QuickEdit for Model Element (See ).

You can use QuickEdit for Relationship (See ).

You can use QuickEdit for Relationship (See ).

UML Activity Diagram
Object Node
Object Node
Object Node

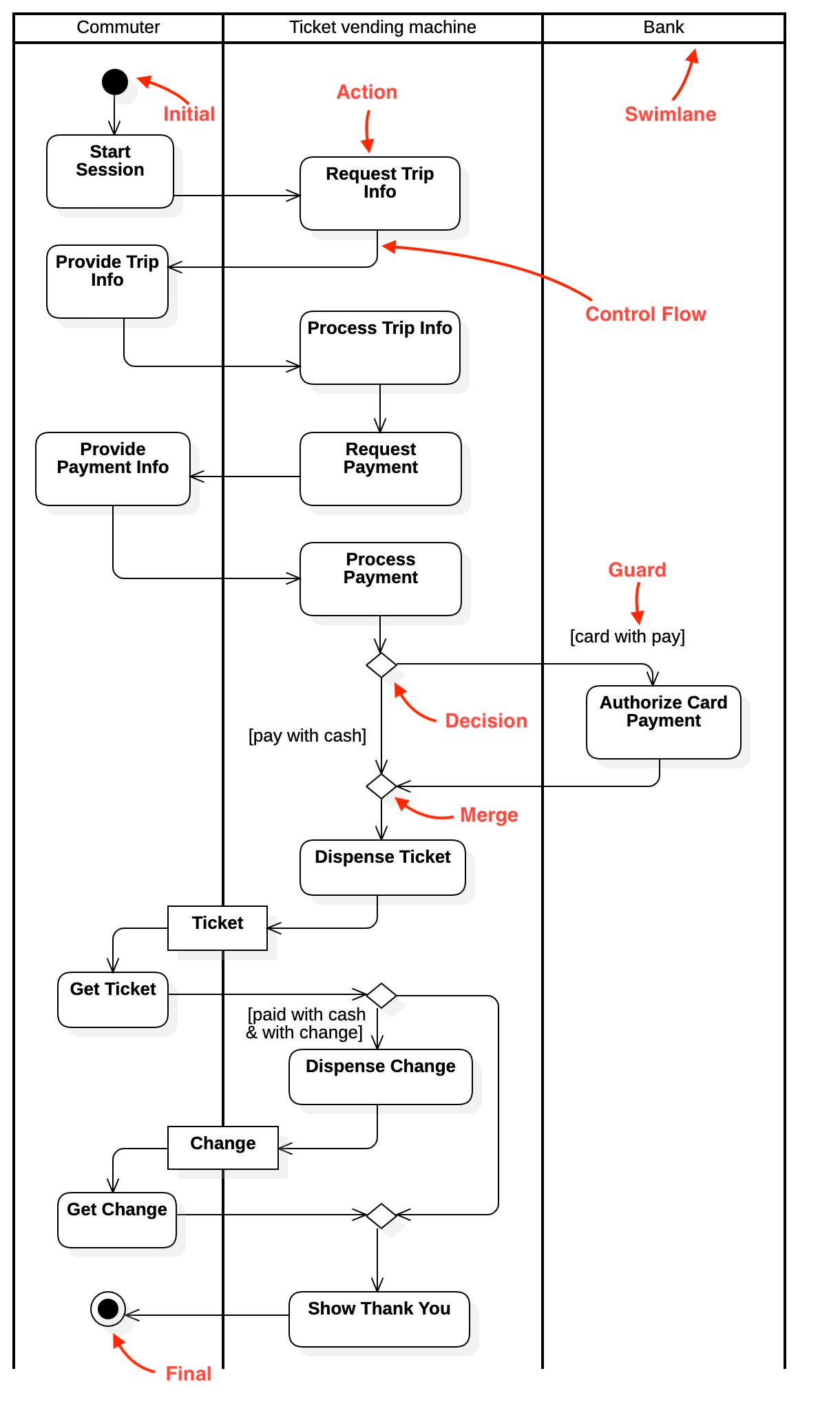

Activity Diagram (from uml-diagrams.org)
